Overview

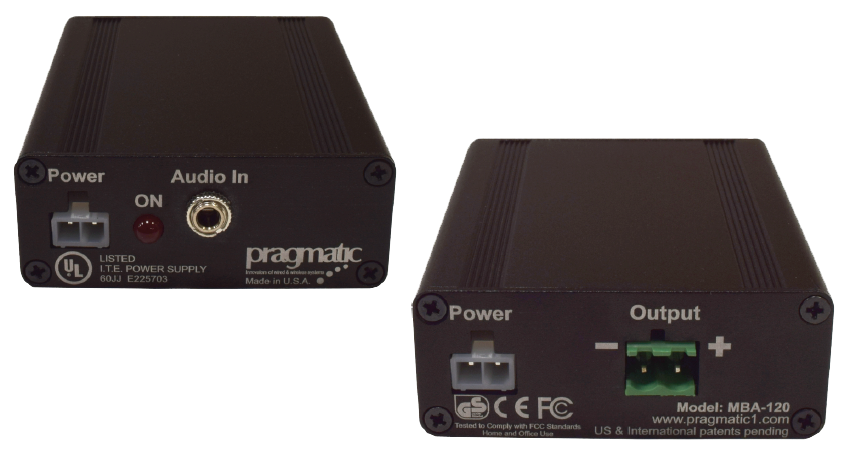

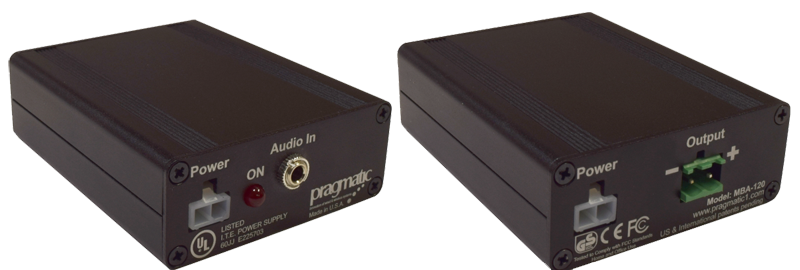

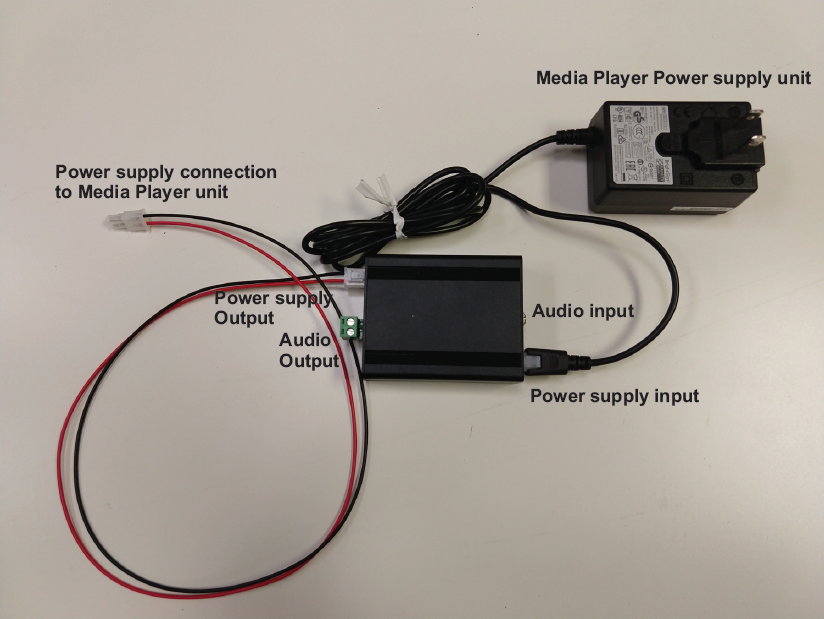

The MBA-120-PS is designed for BrightSign® and similar media players with Molex Mini-Fit Jr.® power connectors. By sharing the player's 12 VDC supply and passing it through, it eliminates the need for an extra AC outlet - most digital signage installations then need only two outlets: one for the display, one for player and amplifier together.
It accepts stereo line level on a 3.5 mm jack (summed internally to mono) and drives 4-32 Ω loudspeakers through locking phoenix terminals, with full protection circuitry. Convection cooled, it hides behind displays and inside plenum spaces.
Features & benefits
- One-channel amplifier for 4-32 Ω loudspeaker loads
- Stereo input summed internally to mono
- 12 VDC power in/out on Molex Mini-Fit Jr.® jacks
- Shares the media player's power supply - saves an AC outlet
- Locking quick-connect phoenix speaker terminals
- Advanced overload / over-temperature / short-circuit protection
- Made in USA
Applications
- Digital signage with BrightSign® and similar media players
- Flat-panel displays, projectors, kiosks
- Classrooms, boardrooms, hospitality, plenum installs
