Overview
The PHA-184's high-performance, full-range drivers offer a well-defined dispersion pattern with no hot spots. It is a compact array speaker designed to work on its own or paired with flat-panel displays and video walls in industrial, commercial and residential home-theater applications. The dual-ported design offers extended low-frequency response rivaling that of many in-ceiling, in-wall and on-wall speakers.
Mounted horizontally as a soundbar, the signal drops off dramatically off-axis while maintaining a very uniform sound field in the vertical dimension. Mounted as a vertical column, it delivers a uniform sound field 360° around the speaker - ideal for public venues or hidden away at home. Options include an external HideAway™ amplifier and a PADS™ or TPA receiver.
Features & benefits
- 4 full-range neodymium drivers
- Weather-proof for indoor and outdoor installations
- Efficient energy consumption
- External HideAway™ amplifier option
- PADS™ or TPA receiver option available
- CE compliant
- Neutral color options for easy décor blending
- Compact 2" × 2" footprint
- Outdoors, shield the dual ports from direct water spray
Applications
- Residential home theater applications
- Digital signage - pairing with flat-panel and video-wall displays
- Hotels, fitness clubs, restaurants, theme parks, museums, shopping malls, grocery stores
In the field

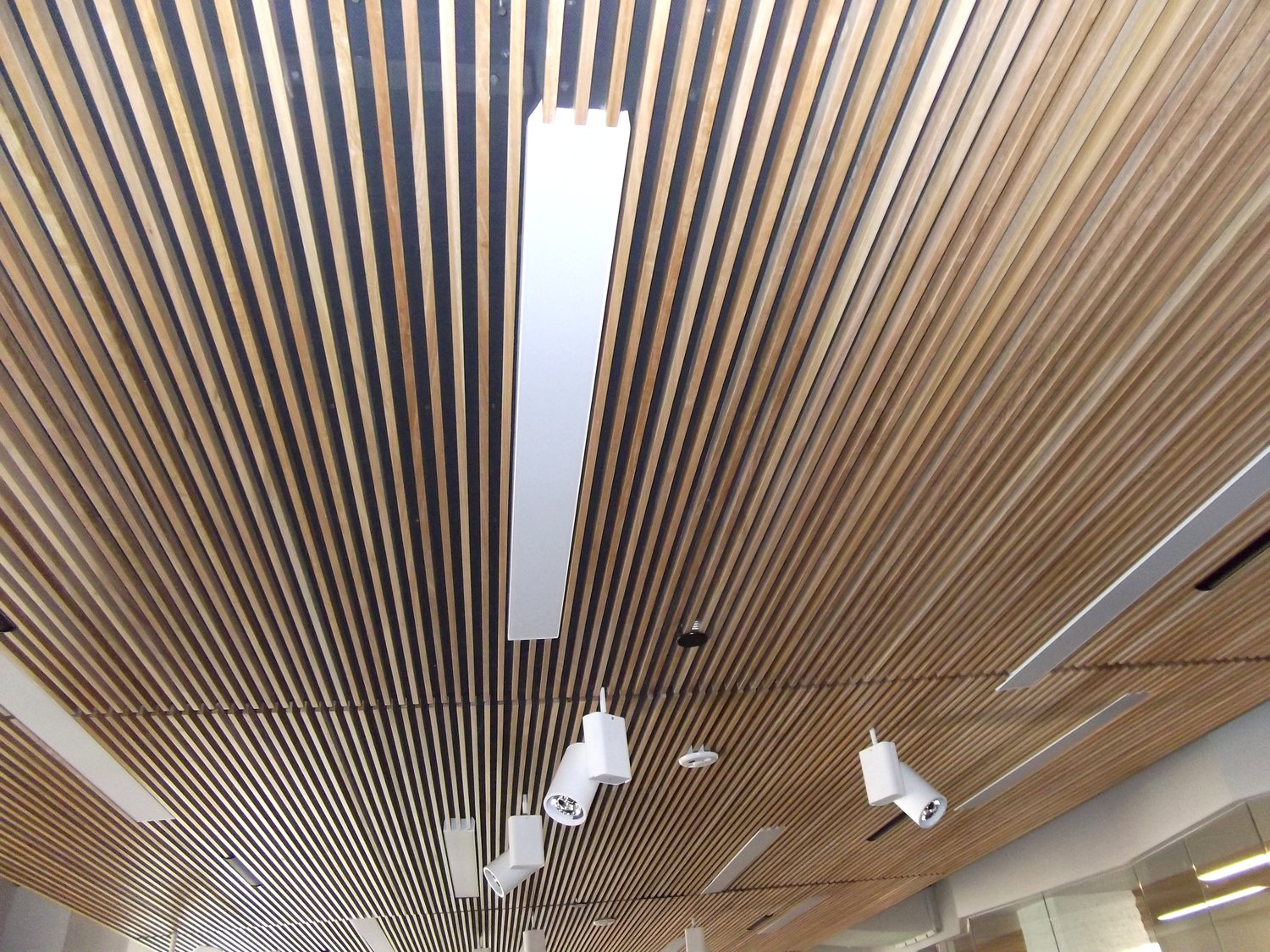

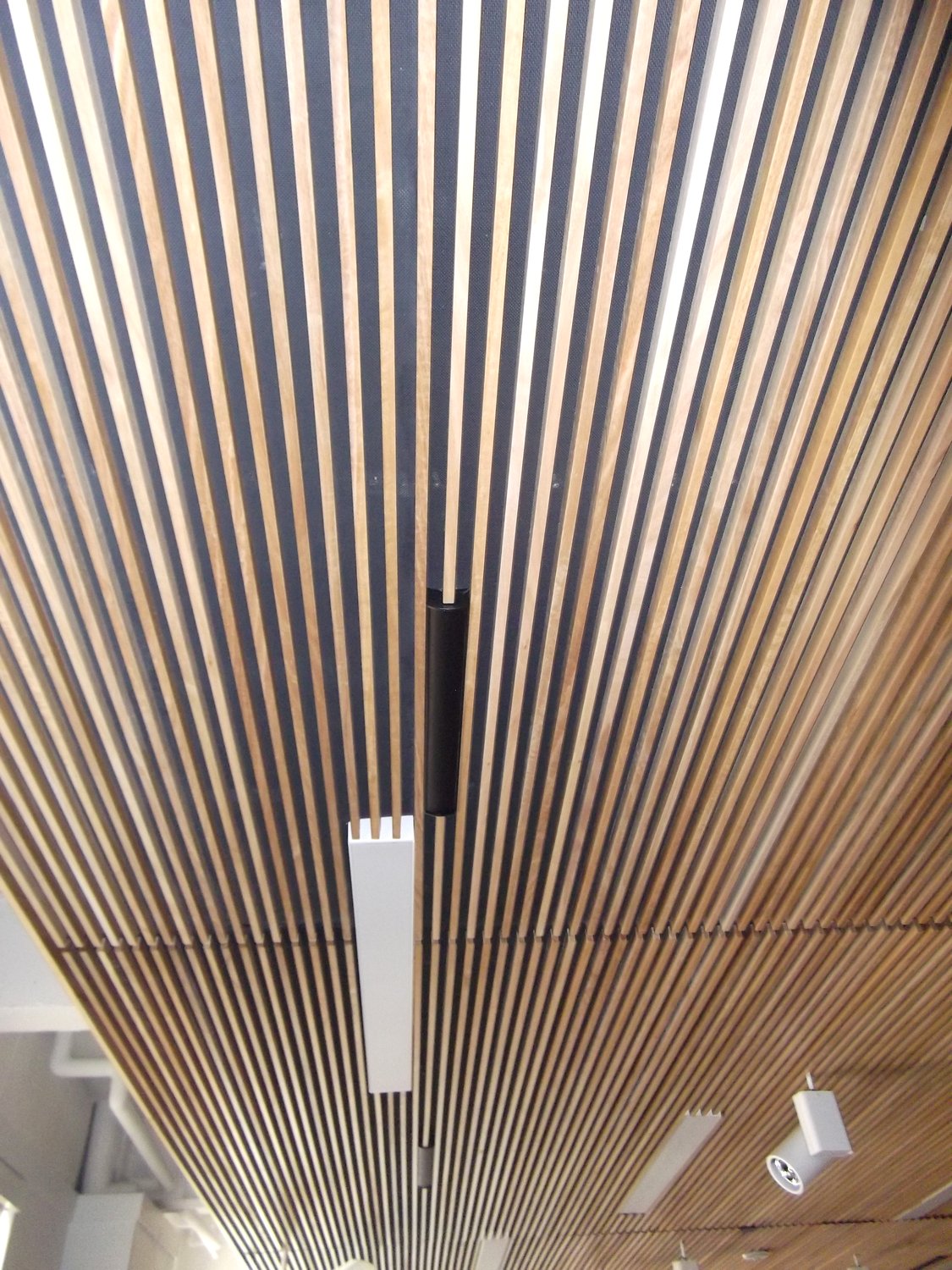

Eight PHA-184B arrays (the black-finish PHA-184) at a collaboration space at 100 Post Street, San Francisco - slipped between the wood ceiling slats alongside the linear lights, black-on-black against the acoustic backing. The dual-ported compact arrays carry program audio with extended low-frequency response while the architecture stays untouched - find the speaker without the callout.
