PADS-USB-HUB

rear

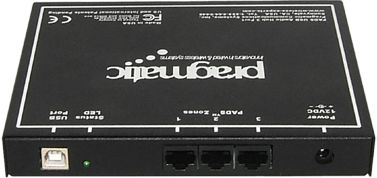

Rear View

Pragmatic Audio Distribution System USB Audio HUB 3 Port
Default model color: Black

The PADS-USB-HUB is a standalone device that attaches to the USB port of any PC based Audio Server. It provides up to three channels of stereo audio along with a control communication channel for transport over CAT-5 cable to PADS Audio endpoints. The PADS-USB-HUB is independently powered and provides power to the audio endpoints.

The PC based Audio server sees the three audio channels as three separate USB audio-DACs native to the server. No special drivers are needed for these DACs under Windows 2000, XP and Vista. Any PC Audio Application e.g. Windows Media Player on the can open these DACs as native audio devices and send music to them.

The communication channel is used to communicate with the local microprocessor in the audio endpoints, for receiving user commands and status information from buttons on the audio endpoints and for sending music captioning information to the audio endpoints.

This communication channel is accessed by the PC Audio Server as a virtual COM Port on the USB Port, and no special drivers are needed for it under Windows 2000, XP and Vista. The server uses a very simple API to talk to the control communication channel via the USB Port.

Placeholder image

Additional resources available for download are listed below

            Three RJ45 connectors for CAT 5 cable connection to Audio Endpoint Zones
            One USB port (device) for connection to the USB Host Port on PC Audio Server
            On-board processor handles USB communications with the Host and control communication with the endpoints
            Built-in four port USB Hub
            USB is version 1.1 Compliant, Full Speed, 12Mbps
            On-board processor handles USB communications with the Host and control communication with the endpoints
            Each port provides 12-15VDC unregulated power to the Audio Endpoints
            LED status indicator
