Pragmatic Audio · PADS™ Audio Distribution
»PPoE-12
Power-over-Ethernet receiver with regulated 12 VDC output
Archived product. No longer in regular production; this page is kept for reference. The PPoE-12 can be considered for revival on large-quantity orders — inquire about volume availability.
30 WIEEE 802.3at compatible
12 VDC@ 2 A regulated output
328 ftreach on Cat5e/Cat6
Isolatedcircuit protection
Overview
The PPoE-12 brings Power-over-Ethernet into the PADS™ ecosystem: a PoE receiver that delivers regulated 12 VDC to audio equipment wherever a network drop exists - no AC outlet required.
Compatible with up to 30 W IEEE 802.3at and backwards compatible with 15.4 W IEEE 802.3af, it passes 10/100/1000 Ethernet through while splitting off clean DC power, with circuit-isolation protection for connected equipment. Plug-and-play point-to-point connection over standard Cat5e/Cat6 up to 328 ft / 100 m.
Features & benefits
- PoE receiver with regulated 12 VDC output
- Up to 30 W IEEE 802.3at · backwards compatible with 802.3af
- 328 ft / 100 m on standard Cat5e/Cat6
- 10/100/1000 Ethernet pass-through
- Circuit isolation protects connected equipment
- Energy efficient, very low power consumption

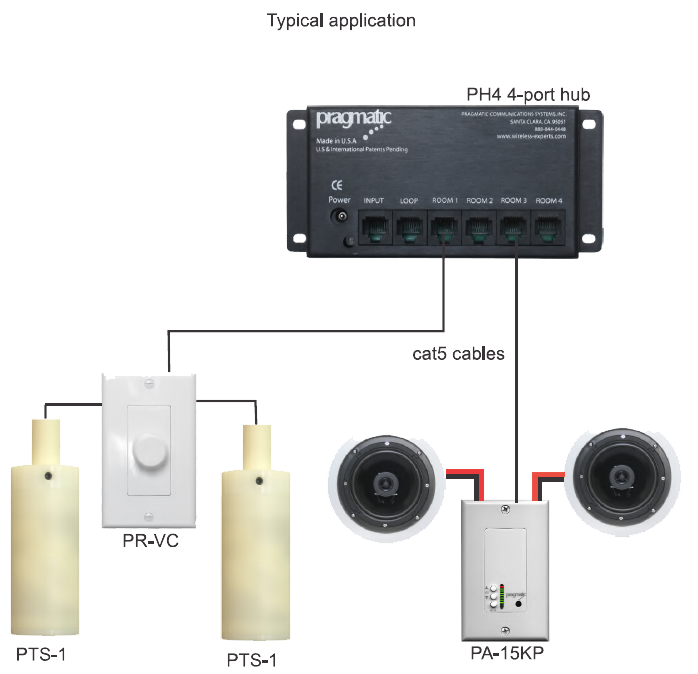

Applications
- Background music and multi-room audio systems
- School and college campuses, hospitals and healthcare facilities
- Theme parks, outdoor events, fitness clubs, hotel lobbies and restaurants
