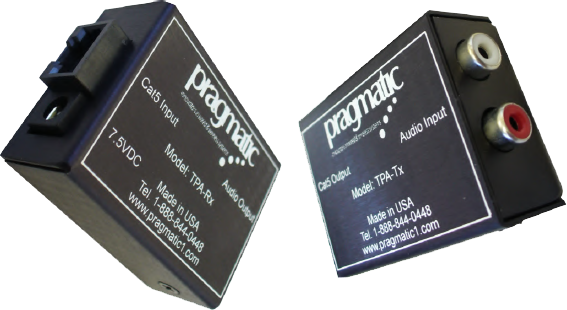

Twisted Pair Audio System

typical application
more applications

Additional resources available for download are listed below

            Background music system
            Multi-room audio system
            School and college campus
            Sports arena/Stadium
            Hospitals/Healthcare facilities
            Entertainment venues
            Shopping malls/digital signage
            House of worship
            Pragmatic proprietary SuperTranz™ circuit with balanced line inputs and outputs on XLR connectors
            Line-level audio signal input/output
            3000 ft./1000m transmission distance on cat5/cat5e or other unshielded twisted pair(UTP) cables
            Also works with cat3/cat6 and other types of shielded twisted pair cables
            No need for gain adjustment
            Eliminates ground loops and noise pickup

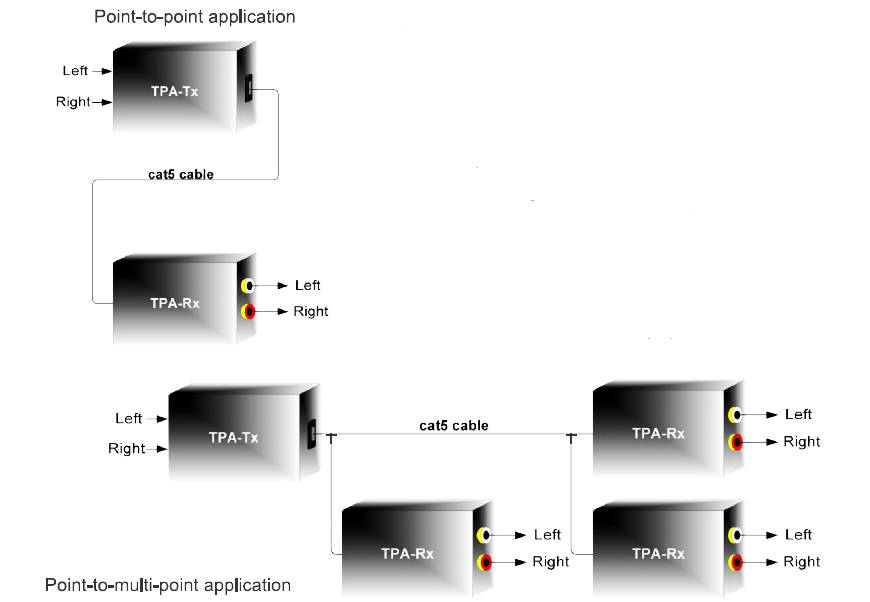

            Point-to-point and point-to-multipoint signal distribution
            Plug-and-play simplicity
            Very low power consumption
