Overview

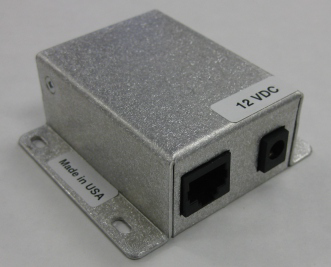

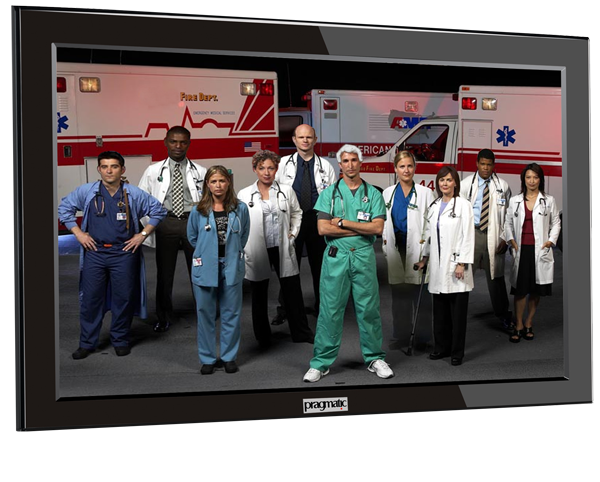

The PDS42 is a digital signage monitor built around a simple idea: no electrical outlet needed near the display. A low-voltage DC interface over Cat5e/Cat6 (via the PPH-1 power hub) places the monitor up to 100 ft from the nearest AC outlet - no certified electricians, no high-voltage runs, dramatically simpler installs.
Full HD 1920×1080 playback with built-in HDMI audio decoding, plus a direct interface for PHA directional speakers through the built-in audio amplifier - a natural pairing with the PTS-4077F for focused signage audio. Power on/off is controllable via network or programming, an integral media player is optional, and sizes from 22" to 55" are available.
Features & benefits
- No electrical outlets needed near the monitor - up to 100 ft away
- Low-voltage Cat5e/Cat6 wiring only; no certified electrician
- Direct interface to PHA directional speakers, built-in amplifier
- Full HD 1920×1080 with built-in HDMI audio decoding
- Power on/off control via network or program
- Optional integral media player · sizes 22"-55"
- DVI-D, HDMI, VGA inputs · UL compliant
- Flame-retardant housing, energy-saver design
- Standard VESA 200 × 200 mm wall mount
- One-year advanced-exchange warranty, extendable to 3 years
Applications
- Digital signage and retail advertising
- Kiosks and point-of-purchase displays
- Menus, lobbies and wayfinding
