PHA Line Array Speakers
Nine compact line arrays sharing one 2" × 2" extrusion — from a 9-inch fill to a 72-inch full-height column. Uniform dispersion, no hot spots, and timbre-matched drivers across the family.
»All models
Choose your line array — side by side
| PHA-4 | PHA-8 | PHA-16 | PHA-25 | PHA-184 | PHA-264 | PHA-5125 | PHA-48 | |
|---|---|---|---|---|---|---|---|---|
| Drivers | 4 full-range | 8 full-range, patent-pending | 16 full-range, patent-pending | 25 full-range | 4 full-range neodymium | 4 full-range neodymium | 25 full-range | 48 full-range |
| Power handling | 1-32 W | 5-72 W | 128 W maximum | 1-200 W | 1-32 W | 1-32 W | 1-200 W | 100 W RMS continuous · 400 W RMS peak |
| Frequency response | 120 Hz-20 kHz | 120 Hz-20 kHz | 120 Hz-20 kHz | 120 Hz-20 kHz | 90 Hz-20 kHz | 108 Hz-20 kHz | 90 Hz-20 kHz | 75 Hz-20 kHz |
| Sensitivity | 83 dB @ 1 W/1 m | 87 dB @ 1 W/1 m | 94 dB @ 1 W/1 m | 96 dB @ 1 W/1 m | 84 dB @ 1 W/1 m | 84 dB @ 1 W/1 m | 94 dB @ 1 W/1 m | — |
| Impedance | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω |
| Dimensions (H×W×D) | 9" × 2" × 2" | 18½" × 2" × 2" | 25" × 2" × 2" (636 × 50 × 50 mm) | 42" × 2" × 2" | 18" × 2" × 2" | 26" × 2" × 2" | 51" × 2" × 2" (1296 × 50 × 50 mm) | 72" × 2" × 2" |
| Weight | 1 lb | 1.5 lbs | 2.25 lbs | 6 lbs | 1.5 lbs | 2.25 lbs | 7.5 lbs | — |
| Finish | White or black anodized aluminum | Black anodized aluminum | Black, white or silver | Black or white · custom colors available | Black anodized aluminum | Black anodized aluminum | Black or white · custom colors available | Protective metal grille in silver, white or black · custom colors |
| Environment | Weather-proof - indoor & outdoor | Weather-proof - indoor & outdoor | Weather-proof - indoor & outdoor | Weather-proof - indoor & outdoor | Weather-proof ¹ | Weather-proof - indoor & outdoor | Weather-proof - indoor & outdoor | Weather-proof - indoor & outdoor |
¹ PHA-184: shield the dual ports from direct water spray when installed outdoors.
»In the field: One Letterman, The Presidio
Invisible speakers. Uniform coverage.

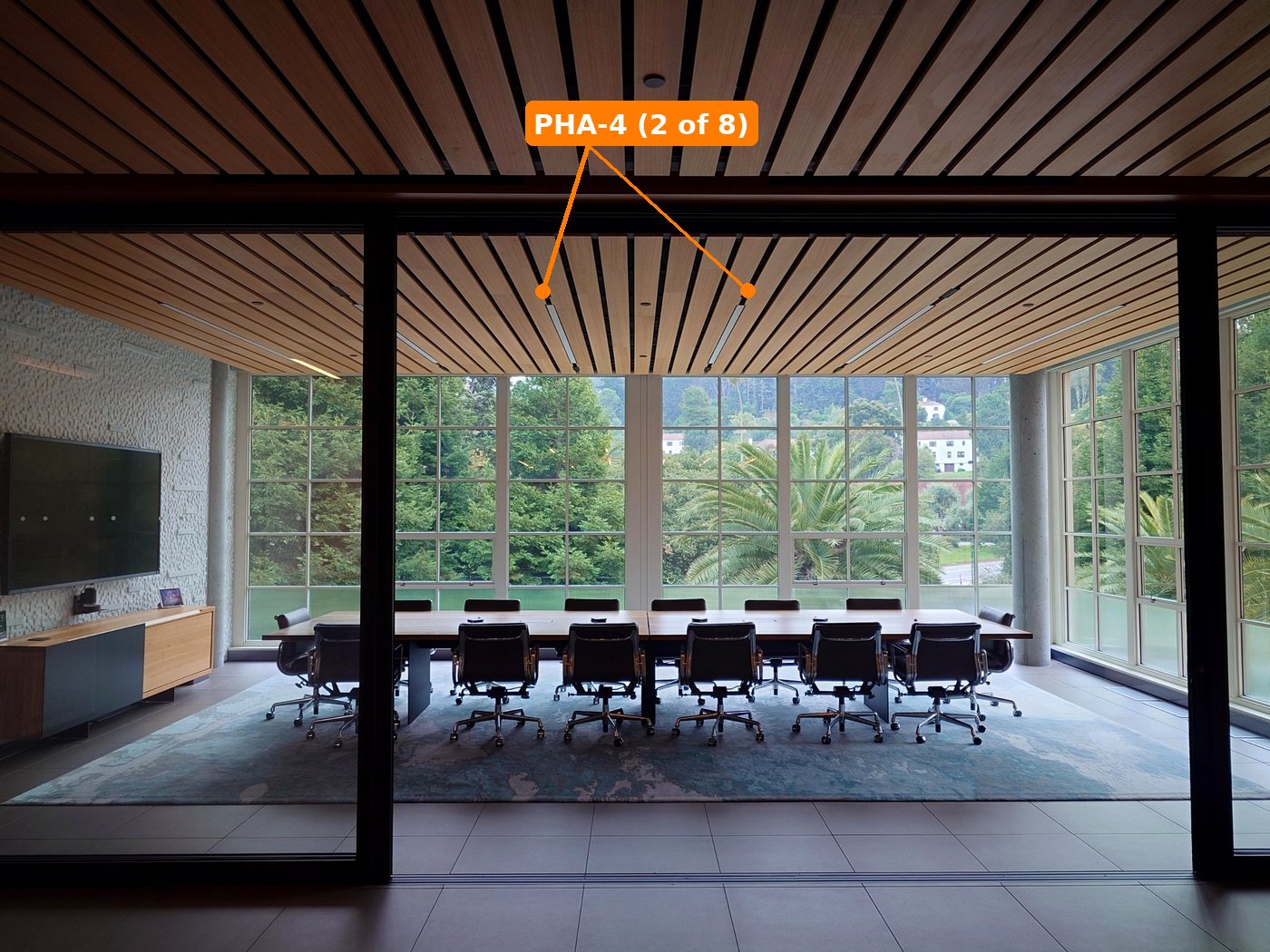

Eight PHA-4 arrays disappear between the wood ceiling slats of this executive boardroom in San Francisco’s Presidio, each driven through a Pragmatic PAT-15 70V/4Ω transformer. The arrays beam straight down onto the seating — almost no energy reaches the glass walls, so reflections stay minimal and every chair hears the same level, with no hotspots. A price-performance combination we’ll put up against any speaker for this class of room — line array or conventional.
»More PHA installs, worldwide
PHA-16W coast to coast
In the ceilings of the world’s largest big-box retailer — white-on-white in the rafters, beaming clear audio into the aisles, store after store.
PHA-184B at 100 Post Street
Eight arrays between the ceiling slats, black-on-black beside the light bars — full-range audio, invisible integration.
PHA-5125B at Sydney Airport
Gate audio clear across the seating area, all but inaudible at the boarding counter. Staff, when asked: “What audio?”
PHA-16B at the Starlight Express Room
Five audio zones above five gaming stations — hospitalized kids play different games side by side without disturbing each other.
PHA-16 on the Las Vegas Strip
Mounted above bus-stop displays, running program audio through desert heat, sun and street noise — outdoors, year-round.
PHA-25 in healthcare signage
Ceiling-mounted above the seats, beaming signage audio onto waiting patients — and off the front-desk staff. The MBA-120 amp hides above the tiles.
PHA-5125B at Farnborough
Four arrays in one exhibit — two above the main display wall, two above the hall entrances, cutting through trade-show floor noise.
“Our fans who own the suites that received the new audio systems were THRILLED! They loved the clarity and the ease of use. Thank you and your staff for all of your last-minute efforts. It’s nice to deal with people who are willing to go the extra mile for customer satisfaction.”
— Tim L. · Stadium, Ohio State University · Columbus, OH
»PHA line arrays on video walls
Make your video wall sound as good as it looks
A 53-second look at why line arrays belong on video walls: conventional speakers spray sound everywhere, while a vertical PHA-5125 column focuses it across the room — intelligible from the front row to 10 m back, with no ceiling slap. Corporate boardroom, hospitality lobby and home-theater layouts from the application white paper.
